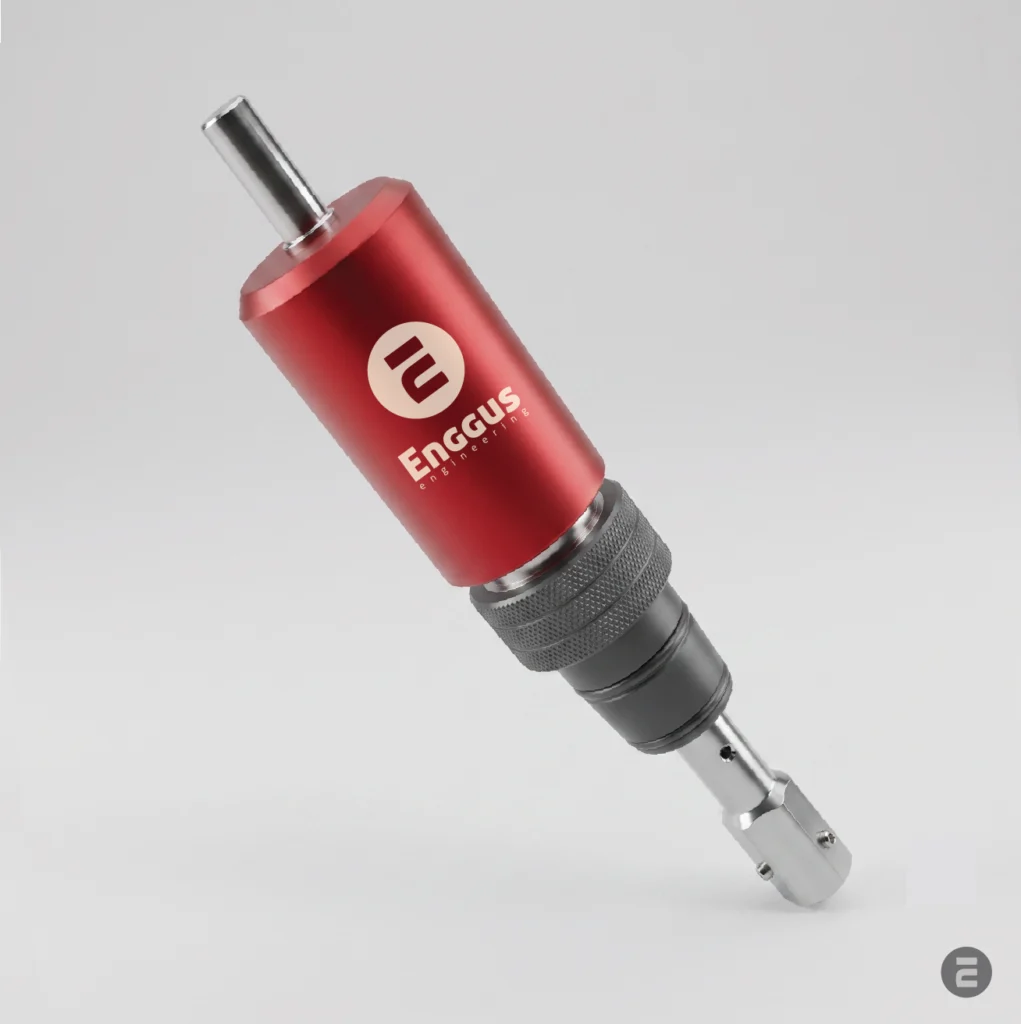

The Mag Labo 240 takes the same zero-leakage conical design as the Mag Labo 70 and steps up to 2.4 Nm torque — for glass reactor work where you need more mixing power to handle viscous solutions or larger flask volumes without sacrificing vacuum integrity.
KEY FEATURES
- 2.4 Nm torque — over 3x the mixing power of the Mag Labo 70 in the same conical footprint
- Zero-leakage magnetic coupling rated for continuous full-vacuum operation
- Wide range of nozzle connections and wetted-part material options
- Rated to 200°C and 6 kg/cm² positive pressure
- Customizable bearing options for demanding lab schedules
BEST FOR
Glass reactor mixing with higher-viscosity contents or larger flask volumes, still under full vacuum.
OUR PRODUCT SERIES - MAG LOBO G-70
Model: EE2401
Nozzle Size: B-24
Material: SS 316L / Hastelloy C-276 / C-22 (Standard)
Torque: 0.7 Nm
Maximum Operating Temperature: 200°C
Maximum Positive Pressure: 6 Kg/cm²
Negative Pressure: Full Vacuum
Bearing Type: Plain Bearing (CFT/PEEK/PI Filled Teflon).
Model: EE2402
Nozzle Size: B-29
Material: SS 316L / Hastelloy C-276 / C-22 (Standard)
Torque: 0.7 Nm
Maximum Operating Temperature: 200°C
Maximum Positive Pressure: 6 Kg/cm²
Negative Pressure: Full Vacuum
Bearing Type: Plain Bearing (CFT/PEEK/PI Filled Teflon)
Model: EE2403
Nozzle Size: B-34
Material: SS 316L / Hastelloy C-276 / C-22 (Standard)
Torque: 0.7 Nm
Maximum Operating Temperature: 200°C
Maximum Positive Pressure: 6 Kg/cm²
Negative Pressure: Full Vacuum
Bearing Type: Plain Bearing (CFT/PEEK/PI Filled Teflon)
Model: EE2404
Nozzle Size: B-45
Material: SS 316L / Hastelloy C-276 / C-22 (Standard)
Torque: 0.7 Nm
Maximum Operating Temperature: 200°C
Maximum Positive Pressure: 6 Kg/cm²
Negative Pressure: Full Vacuum
Bearing Type: Plain Bearing (CFT/PEEK/PI Filled Teflon)
Model: EE2405
Nozzle Size: B-55
Material: SS 316L / Hastelloy C-276 / C-22 (Standard)
Torque: 0.7 Nm
Maximum Operating Temperature: 200°C
Maximum Positive Pressure: 6 Kg/cm²
Negative Pressure: Full Vacuum
Bearing Type: Plain Bearing (CFT/PEEK/PI Filled Teflon)
OUR PRODUCT SERIES - MAG LOBO GS-70
Model: EE2406
Nozzle Size: B-24
Material: SS 316L / Hastelloy C-276 / C-22 (Standard)
Torque: 0.7 Nm
Maximum Operating Temperature: 200°C
Maximum Positive Pressure: 6 Kg/cm²
Negative Pressure: Full Vacuum
Bearing Type: SS Rust-Resistant / Ceramic Bearing
Model: EE2407
Nozzle Size: B-24
Material: SS 316L / Hastelloy C-276 / C-22 (Standard)
Torque: 0.7 Nm
Maximum Operating Temperature: 200°C
Maximum Positive Pressure: 6 Kg/cm²
Negative Pressure: Full Vacuum
Bearing Type: SS Rust-Resistant / Ceramic Bearing
Model: EE2408
Nozzle Size: B-24
Material: SS 316L / Hastelloy C-276 / C-22 (Standard)
Torque: 0.7 Nm
Maximum Operating Temperature: 200°C
Maximum Positive Pressure: 6 Kg/cm²
Negative Pressure: Full Vacuum
Bearing Type: SS Rust-Resistant / Ceramic Bearing
Model: EE2409
Nozzle Size: B-24
Material: SS 316L / Hastelloy C-276 / C-22 (Standard)
Torque: 0.7 Nm
Maximum Operating Temperature: 200°C
Maximum Positive Pressure: 6 Kg/cm²
Negative Pressure: Full Vacuum
Bearing Type: SS Rust-Resistant / Ceramic Bearing
Model: EE2410
Nozzle Size: B-24
Material: SS 316L / Hastelloy C-276 / C-22 (Standard)
Torque: 0.7 Nm
Maximum Operating Temperature: 200°C
Maximum Positive Pressure: 6 Kg/cm²
Negative Pressure: Full Vacuum
Bearing Type: SS Rust-Resistant / Ceramic Bearing
Product Brochure
CUSTOMISE Magnetic Drive Stirrer
Custom nozzle sizes or materials outside this table? Fill out the MAG-it configurator.
